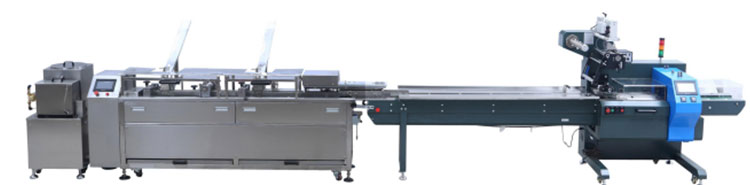

Sandwich Packing Machine

Features :

(1). PLC for simple operation including machine set-up, hopper controls, speed adjustments.

(2). Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.

(3). Removable scrap trays are provided for simple scrap collection and machine cleaning.

(4). Easy to operate: Simple adjustments for machine speeds, cream volume.

(5). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster

(6). Separating cream holding tank and feeding system.

(7). No biscuit no cream system.

(8). Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes.

(9). Every cream hopper with independent motor and reducer.

(10). Mobile cream hopper can cleaning while finish working separately (11).Stainless steel gear pump, connection tubes between cream hopper and stencil are jacket desig.

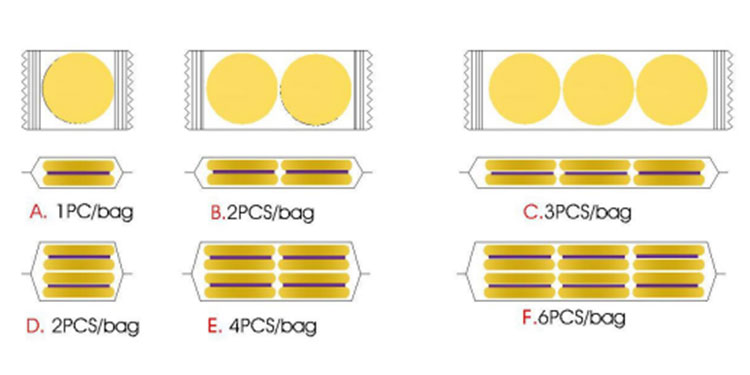

Packing Types:

Technical Parameter:

(1) Application: One lane cream fillings biscuit

(2) biscuits size: Round biscuits: Φ40-Φ70mm, thickness:4-8mm Rectangle biscuits(LxW): (40-80)x(40-70)mm

(3) Speed: 500sandwiches/min.

(4) Electricity: 5KW,220V,50-60Hz

(5)Weight: about800kg
